Automatic
Form Fill & Seal Machine
|
 |
 |
|

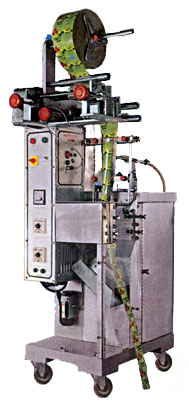

Automatic
Form Fill & Seal Machine
to pack liquid items upto 200ml
|

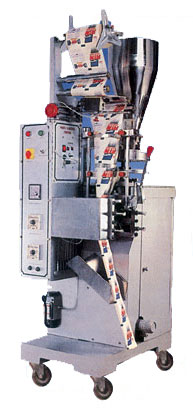

Automatic
Form Fill & Seal Machine
to pack dry items upto 200ml
|
Salient Features:
- Fully automatic,
Compact and Robust machine.
- Simplified
operation and low maintenance
- Top quality
components and best workmanship
- All parts are made
of Stainless steel
- Fast changeover of
pouch/sachet size and filling volume
- Photoelectric mark
registration system for precise cutting and
sealing of the sachets / pouches
- Counter for number
of pouches packed
- Machine mounted on
castor wheels for easy movement
- Custom-made to
suit specific requirements
|
|
SPECIFICATIONS
|
| Sealing
Type: |
3-side
sealing |
3-side
& 4-side sealing |
Center
sealing |
3-side
and 4-side sealing |
Pouch
size
Range :
(in mm) |
Width
: 20 to 150
length : 45 to 240 |
Width
: 20 to 150
length : 45 to 240 |
Width
: 20 to 150
length : 45 to 240 |
Width
: 20 to 150
length : 45 to 240 |
| Filling
range* |
DRY
(gms)
a)0.5
to 30
b)30 to 50
c)50
to 100
d)100to200
e)100to200 |
|
DRY(gms)
a)
0.5to30
b) 30to50
c) 50to100
d)100to200 |
LIQUID
(ml)
a) 1
to 25
b) 25 to 50
c) 50
to 100
d) 20
to 100
e) 50
to 200 |
|
|
DRY (gms)
a) 0.5to30
b) 30to50
c) 50to100
|
DRY
& LIQUID
a)
0.5 to 30gms per 1to25ml
b) 30 to 50gms per 25 to 50 ml
c)
50 to 100g
per 50 to 100 ml
|
| Operational
Speed** |
30 to 100
|
Dry - 30 to 100
Liquid - 30 to 70
|
30 to 100
|
Dry-30to100
Liquid-30to70
|
| Packing
Material |
All type
of heat seal able laminates and special heat seal able
film.
|
|
Power-Motor |
1/4 or
/1HP 220V/single phase 50-60HZ
|
| Heater |
150w x 2 Nos.
|
---
|
150w x 2 Nos.
|
---
|
| Load |
300w X 2 No
|
300w X 4 No
|
300w X 2 No
|
300w
X 4 No
|
| Reel Dimensions: |
Outdia Max. 350mm
|
Core inner dia: 70 /76 mm
|
---
|
---
|
| Machine
Dimension |
750mm X 560mm X1750mm (LxDxH)
|
| Shipment
Dimension |
100mm X 910mm X 1550mm
|
| Net
Weight |
380 Kg. Approx.
|
| Gross
Weight |
450 Kg. Approx.
|
* Note
Depending on the specific gravity of the product for DRY &
flow rate of the LIQUID product.
** Note Depending upon flow rate & volume of the DRY
product and viscosity and volume of the LIQUID product
OPTIONAL
ATTACHMENTS:
-
Date &
Batch No. Coding device-print embossed coding.
-
Batch
cutting device.
-
Inert gas flushing
system for extended product shelf life.
-
Take off
conveyors.
-
Adjustable
disc arrangement system.
-
Telescopic
disc system.
-
Special
glass enclosure to avoid product contamination and
dusting.
-
Hopper level
sensor device.
-
Augur filling
system for non free-flowing powders.
-
Rat tail
cutting device.
Note: No.
1to4 can be used for any machine, No.5 to 9 are for DRY
packing only & No. 10 is for LIQUID packing only.
APPLICATIONS:
These machines
can be used to pack dry and liquid products such as
DRY : Powder, Granules, Tea dust, Ground Coffee,
Tablets, Candies, Pan masala, Tobacco, Curry powder, Beans,
Salt & Pepper, Cereals, Spices, Detergent powder, Peanuts,
Sugar, Soft drink concentrates, ORS (Oral Rehydration Salt)
& other medical powders, Talcum powder, Milk powder, Hair
dye powder Myrtle (Henna) and many more.
LIQUID : Shampoo, Hair oil, Liquid detergent, Liquid
hair dye, Lubrication oils, Syrup, Ketchup, Liquid soap and
many more.
PASTE : Shaving cream, Beauty cream, Ointment, Tomato
paste and many more.
Prompt
& Efficient after Sales Service. Easy availability of
Spare parts.
|
